Description

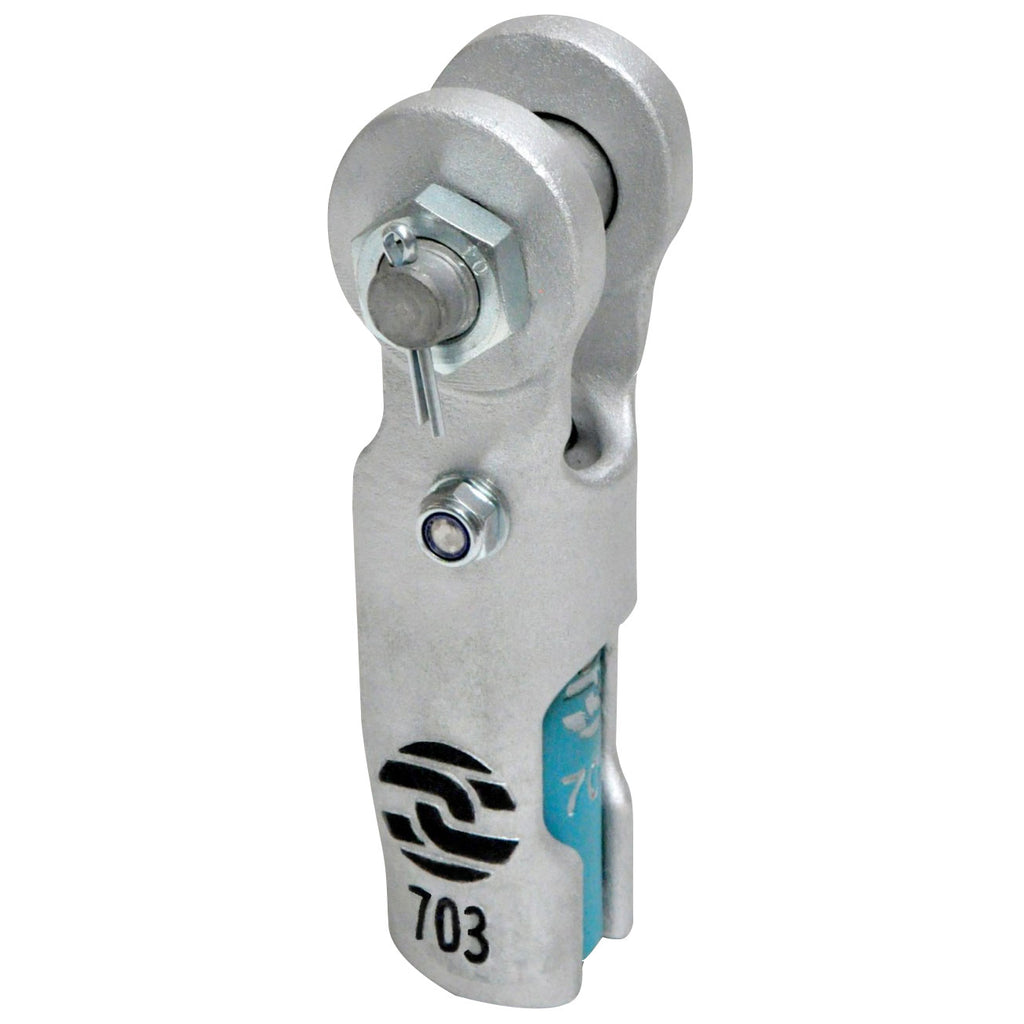

Fast Connector Sockets (FCS) from Global Rope Fittings are precision tools designed for quick and secure wire rope assembly, especially in mobile and crawler crane operations. Their compact connector fitting allows for streamlined reeving, while a non-rotating device enhances stability under load. With a 100% efficiency rating, these sockets maintain the full strength of wire ropes rated at 2160 N/mm² and are optimized for dynamic applications like construction, offshore lifting, and heavy-duty load transfers. A cap with an integrated eye simplifies handling, and they work seamlessly with shackles, hooks, and swivels to form a reliable rigging system. These sockets reduce setup time and enhance safety, making them an essential component for professional riggers. Designed for durability and performance, Fast Connector Sockets hold secure connections in demanding environments.
Dimensions are in inches unless otherwise noted.
Model Number | MBL (Mtons) | For Wire Rope | Approx. Resin Volume (cc) | A | B | C | D | E | F | G | Ø H | K | L | M | Ø N | Ø P | X | Y | Ø Z | Weight (lbs) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCS 701 | 20 | 7/16 - 1/2 | 35 | 7.5 | 2.6 | 3.8 | 1.1 | 1.9 | 0.5 | 1 | 0.6 | 1.6 | 2.8 | 1.9 | 1.03 | 1 | 1.8 | 0.31 | 0.31 | 3.8 |
FCS 702 | 25 | 1/2 - 5/8 | 50 | 8.9 | 3.1 | 4.5 | 1.3 | 2.2 | 0.57 | 1.26 | 0.75 | 2 | 3.3 | 2.3 | 1.26 | 1.18 | 2.3 | 0.31 | 0.31 | 5.8 |
FCS 703 | 40 | 2/3 - 3/4 | 80 | 10.2 | 3.5 | 5.1 | 1.6 | 2.7 | 0.65 | 1.5 | 0.85 | 2.36 | 3.9 | 2.8 | 1.5 | 1.38 | 2.5 | 0.39 | 0.41 | 8.6 |
FCS 704 | 55 | 7/8 | 125 | 11.9 | 4.3 | 5.7 | 1.9 | 3.1 | 0.81 | 1.77 | 1.05 | 2.7 | 4.6 | 3.1 | 1.77 | 1.6 | 3.2 | 0.47 | 0.47 | 15 |
FCS 705 | 80 | 1 | 160 | 14.4 | 4.9 | 7.2 | 2.3 | 3.6 | 0.89 | 2 | 1.16 | 3.1 | 5.4 | 3.7 | 2 | 2 | 3.7 | 0.47 | 0.47 | 23 |
FCS 706 | 100 | 1-1/8 | 210 | 15.7 | 5.5 | 7.7 | 2.6 | 4.3 | 1 | 2.25 | 1.32 | 3.5 | 6.2 | 4.1 | 2.3 | 2.25 | 3.8 | 0.47 | 0.47 | 30 |
FCS 707 | 120 | 1-1/4 | 350 | 16.8 | 5.9 | 8.1 | 2.8 | 4.9 | 1.1 | 2.5 | 1.44 | 3.9 | 6.7 | 4.4 | 2.5 | 2.5 | 3.9 | 0.47 | 0.47 | 42 |
FCS 708 | 130 | 1-3/8 | 425 | 18.3 | 6.7 | 8.7 | 3 | 5.2 | 1.1 | 2.75 | 1.58 | 4 | 7.2 | 4.6 | 2.7 | 2.5 | 4.3 | 0.63 | 0.56 | 51 |
FCS 709 | 160 | 1-1/2 | 500 | 19.8 | 7.2 | 9.5 | 3.1 | 5.5 | 1.2 | 3 | 1.7 | 4.3 | 8.2 | 4.9 | 3 | 2.75 | 4.5 | 0.67 | 0.69 | 90 |
FCS 710 | 200 | 1-5/8 | 700 | 21.7 | 7.9 | 10.4 | 3.3 | 5.8 | 1.3 | 3 | 1.9 | 5 | 9.1 | 5.6 | 3.3 | 3 | 4.9 | 0.78 | 0.78 | 110 |
FCS 711 | 250 | 1-3/4 - 1-7/8 | 1250 | 24.4 | 8.9 | 11.8 | 3.9 | 6.7 | 1.53 | 3.5 | 2.2 | 5.5 | 10.2 | 6.2 | 3.7 | 3.5 | 5.3 | 0.78 | 0.78 | 145 |
FCS 712 | 300 | 2 | 1425 | 27 | 9.5 | 13.2 | 4.3 | 7.3 | 1.81 | 4 | 2.36 | 6.2 | 11.2 | 6.9 | 4.1 | 3.75 | 5.9 | 1 | 0.88 | 175 |
FCS 713 | 375 | 2-1/4 | 2000 | 30 | 10.8 | 14.4 | 14.72 | 8.25 | 2.1 | 4.45 | 2.6 | 6.7 | 13 | 7.3 | 4.66 | 4.25 | 6.5 | 1 | 0.88 | 235 |
